How to Repair Car Dent with Body Filler

DIY: How to Repair Car Dent with Body Filler

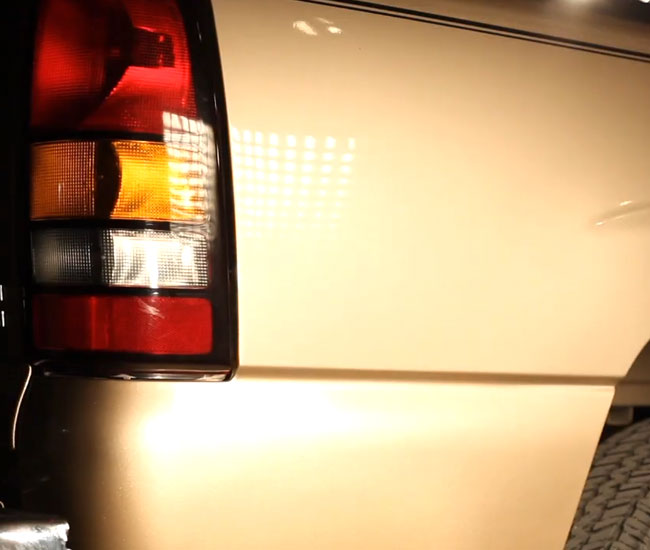

This car had a small dent on the side. To repair something like this, will cost you hundreds of dollars at the body shop. Who has extra money in this economy? In this post, I will tell you how to do the same repair for a fraction of the cost.

All of my car paint repair tutorials are designed for beginners with no prior experience.  I try to provide as much information as possible including step-by-step pictures and videos.

To repair this dent, you will need to use body filler, spot putty, primer, touch-up paint, and clear coat. This fun do-it-yourself project can be easily done over the weekend. No experience is needed.

I don’t recommend using cheap products, since they can compromise the result.  My goal is to save you money, but still give you good-quality products. Below are the products I personally use and recommend to all of my friends.

Items You’ll Need:

  • Primer (aerosol spray) – For this repair, they used a gray primer. You should pick a primer that works best for your color. The closer it is to the color of your car, the fewer paint coats you will need to cover it.
  • Touch-Up Paint (aerosol spray) – Custom paint matching your car. Click on the link and select your color.
  • Clear Coat (aerosol spray) – Clear coat is used for paint protection and shine.
  • Body Filler – Body filler is used to repair dents, dings, holes, and scratches. I like Ultimate Premium Body Filler by Bondo. This is their latest product that has superior adhesion to all metals including Galvanized and Aluminum.
  • Spot Putty – Spot putty is used for filling chips, small dings, scratches, and pinholes in body filler. It is much easier to sand.
  • Plastic Spreader – Gives a smoother application of body fillers and spot putty.
  • Assorted Wet/Dry Sandpaper – This pack includes 5 sheets of assorted sandpaper (1 sheet each of 180, 320, 600, 1000, and 1,500) and can be used for sanding primer, clear coats,  and automotive paints.
  • Sandpaper: 40 grit and 80 grit – This is rough sandpaper that is used for sanding body filler.
  • Auto masking tape and Old Newspapers
  • Prep solvent – It is great for removing oils, road grease, dirt, car wax, and other surface contaminants. It also improves adhesion to the surface.
  • Meguiar’s Ultimate Compound – A rubbing compound used to remove light-to-deep clear coat scratches, swirl marks, stains, and heavy oxidation. Use it at the very end of the repair process. Meguiar’s Ultimate Compound is the best car scratch remover on today’s market.

Optional Items:

I want to save you as much money as possible, that is why I put all of these items under optional. I know that some people have money only to buy the minimum and don’t care if their car has a showroom shine.

  • Microfiber Towel – Avoid using other materials such as bath towels, paper towels, or washcloths, as they might leave scratches on the clear coat.
  • Applicator Pads – These pads are used to apply rubbing compound, polish, and wax.
  • Meguiar’s Ultimate Polish – Use your favorite polishing compound. I like Meguiar’s Ultimate Polish because it uses diminishing abrasive technology, meaning the tiny abrasives break down gradually as you rub. The paint color will look bolder and brighter with a smooth, sleek shine. It is high quality, inexpensive, long-lasting, and clear coat-safe.
  • Meguiar’s Tech Wax – Use your favorite wax. I like Meguiar’s NXT Generation Tech Wax. This product is amazing because not only does it give the deepest and clearest shine you’ve ever seen, but it also acts as a paint sealer giving your car long-lasting protection.
  • Dual Action Sander/Polisher – I found a nice beginner polisher on Amazon for a reasonable price that will give you amazing results. There are a lot of professional polishers, but they cost over $200. This Black & Decker polisher got great customer reviews.
  • Aerosol Spray Trigger ***How to Repair Deep Bumper Scratches – I put this item under optional items, however, I think it is a must-have when it comes to spray paint. It turns a spray aerosol can into a spray gun making it easier to apply the paint and clear coat.
  • Plastic Mixing Board – You will need it to mix body filler and a cream hardener.
  • Tack Rag Video Tutorial: Do It Yourself Car Paint Repair   Part 2
  • Respirator, Gloves, Goggles

Step 1: Get Touch-Up Paint

It is very important to have a good quality matching touch up paint. There should be a label with a paint color code somewhere inside of your car. If you have difficulty finding it, read my article on where to find paint color code.

Step 2: Personal Safety

I know that some people think it is not a big deal, but I do recommend protecting yourself by wearing gloves, goggles, and a mask. The paint products are toxic and should not be inhaled. You should at least wear the mask.

Step 3: Wash the Area

Start the repair by washing your car. Prep solvent is a great way to remove wax, oils, and dirt. The goal is to start with a clean surface.

Step 4: Sanding

Sanding is done to promote mechanical adhesion. Sand the area with 180-grit sandpaper to get rid of any peeling paint and to prepare the area for a body filler.

Step 5: Apply Body Filler

Body filler is used to fill dents, very deep scratches, and holes. Buy a good quality body filler. You will be thankful later.

The cheap stuff, that costs about $10  a gallon, will cure rock hard and you will end up spending a lot of extra time sanding it. In addition, to the lost time, you will lose all the money you saved on extra sandpaper.

Body filler comes with a cream hardener that needs to be mixed with the filler before application. Read the instructions first.

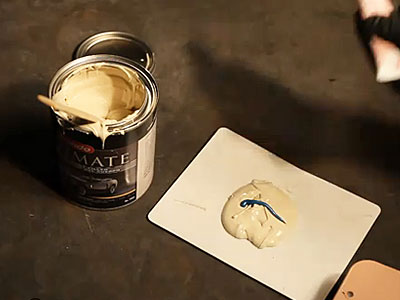

Mix the filler with the hardener on the plastic mixing board until the mixture is one uniform color. If you don’t have money to buy a mixing board, you can use regular cardboard.

The downside of using cardboard is that it might suck out some of the chemicals out of the filler. But if you are fixing only one dent and not doing the whole car, I think there will not be enough time for the cardboard to absorb the chemicals. If you have a lot of dents, definitely use a plastic board.

You need to make sure you mix enough filler for your repair the first time. Since it hardens quickly, going back and forth mixing more filler will result in different hardiness of filler next to each other.

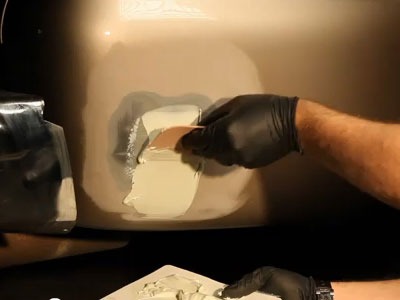

You also don’t want to apply more filler than you need because it will take you longer to sand it. The recommended amount of filler should not exceed more than a 1/4 inch thick. It is best to apply filler with a plastic spreader.

The time it takes to cure really depends on how much hardener you add, the temperature in the room or outside, and how much of the filler you apply to the surface. On average, it should take about 20 min to cure.

Step 6: Sand Body Filler

Sand the roughest parts of the filler with 40-grit sandpaper. Work your way to 80-grit and follow it with 180-grit.

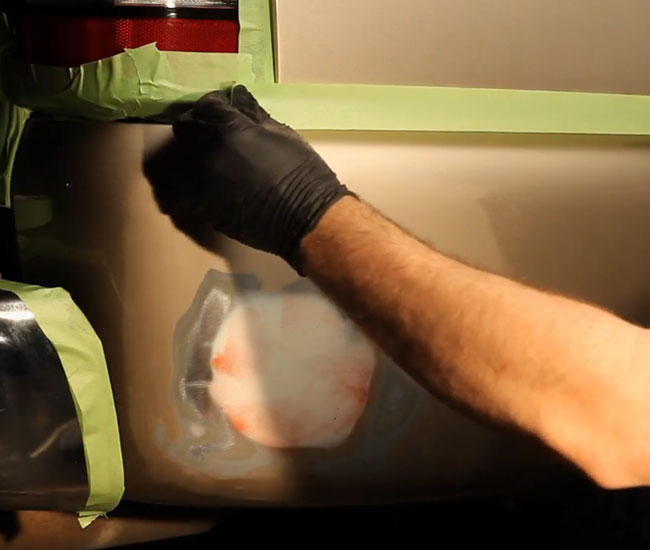

Step 7: Apply Spot Putty

The spot putty is used to fill in imperfections like deep scratches and pin holes in the filler and achieve a completely smooth surface.  Apply a thin coat of spot putty using a plastic spreader. Let it dry before sanding.

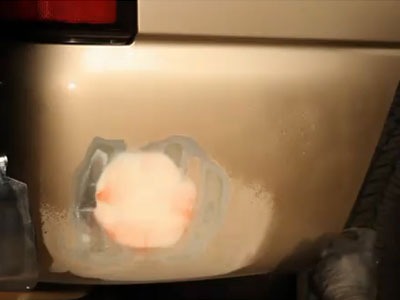

It will take anywhere between 15-30 min for the spot putty to dry. Sand it with 180 grit and then move to 320 grit. Next, clean the area with prep solvent and dry completely.

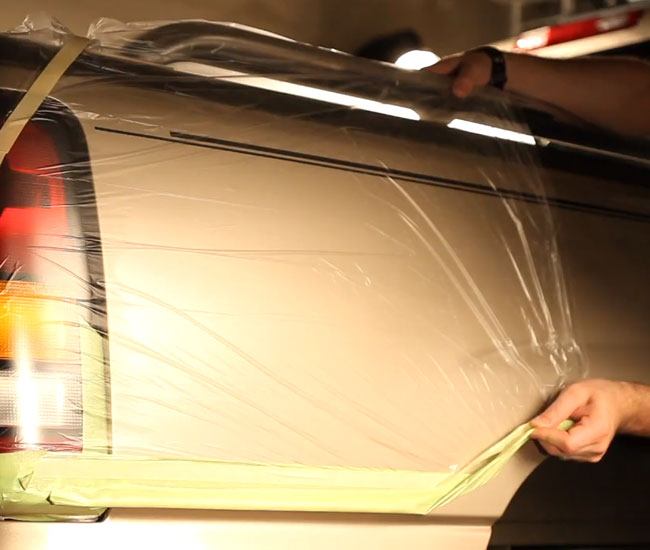

Step 8: Masking

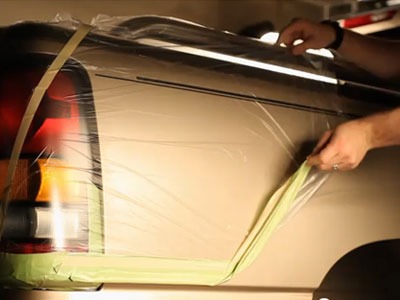

Mask the area off before applying primer to prevent overspray. Use auto masking tape and old newspapers or plastic. Duck tape is too sticky and will leave a residue that is hard to remove.

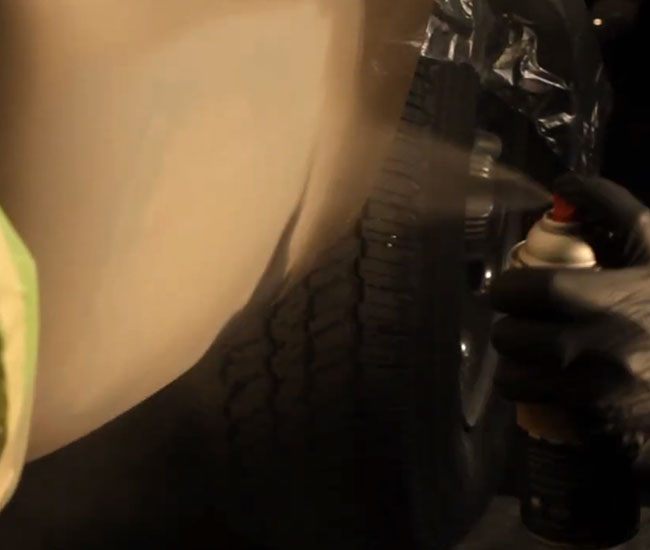

Step 9: Apply Primer

The primer comes in different colors. The closer the color of the primer is to your car, the easier it is to cover with touch-up paint. For this repair gray primer was the best.

Use a plastic trigger for better control. It easily slides onto the can turning it into a spray gun. I know they are not using it in this video, but it really helps especially if you are a beginner.

Read instructions. Shake the can. Hold the can 15 inches away from the surface and spray in even strokes. 3-4 coats of primer should be enough. It takes about 15 min for each to dry.

Step 10: Sand Primer

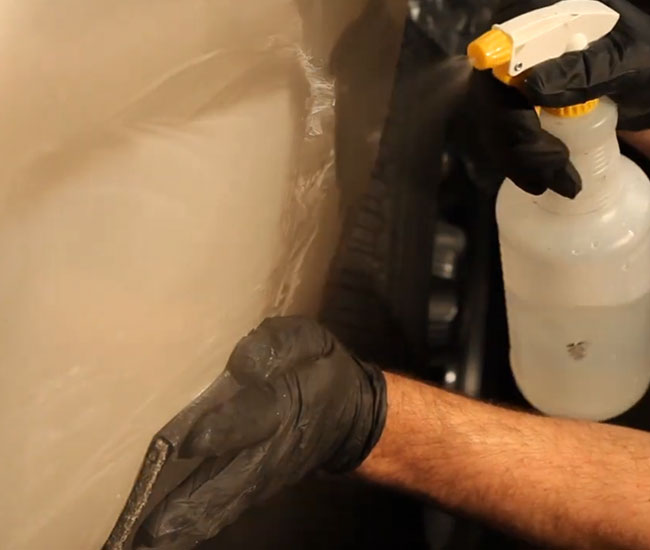

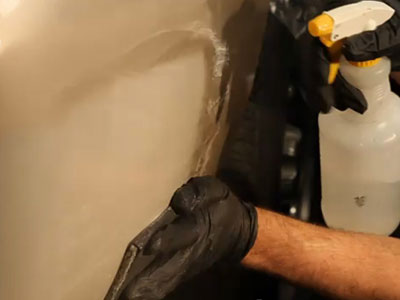

Wait 30 min for the primer to dry. I prefer wet sanding over dry. Soak sandpaper in cold water for 10 min. Spray the area with water. Gently sand the primer with wet/dry 600-grit sandpaper.

Adding a few drops of dish soap to the water will make it more slippery. When done, clean and dry the surface. Now, you are ready for touch-up paint.

Tip: In this step, you can remove primer overspray by sanding it with 1,000 grit sandpaper. Gently wet sand the area around the primer that might get some touch-up paint and clear coat with 1,500 grit.

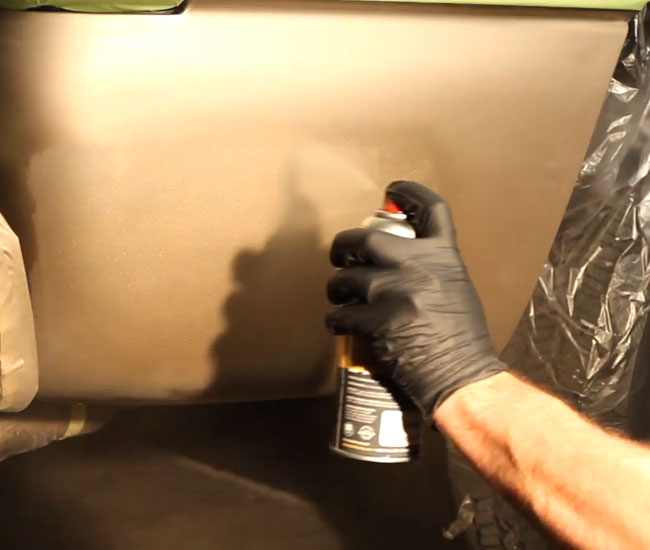

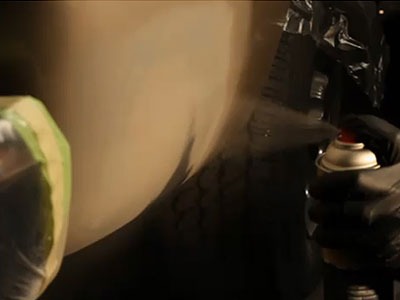

Step 11: Apply Touch-Up Paint

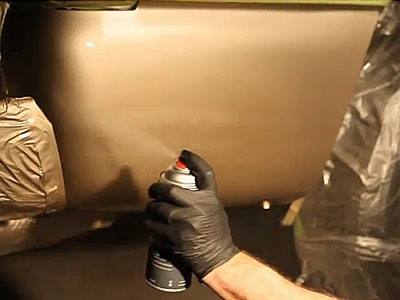

Read instructions. Use a plastic trigger to convert your can into a spray gun. This step will give you better control and coverage. Shake the can. 3-4 coats of touch-up paint should be enough.

Spray even thin coats giving each coat 15 min to dry. Wait for 30 min before applying a clear coat. For better paint blending, each coat of paint should cover a little more area than the previous one. It’s called paint “feathering”.

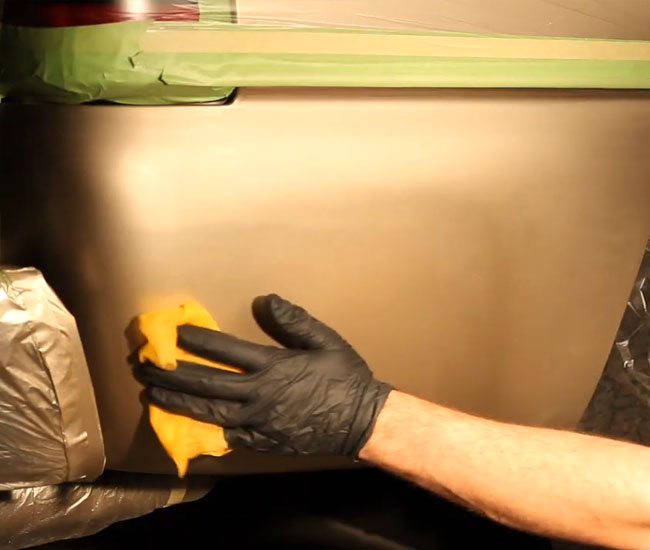

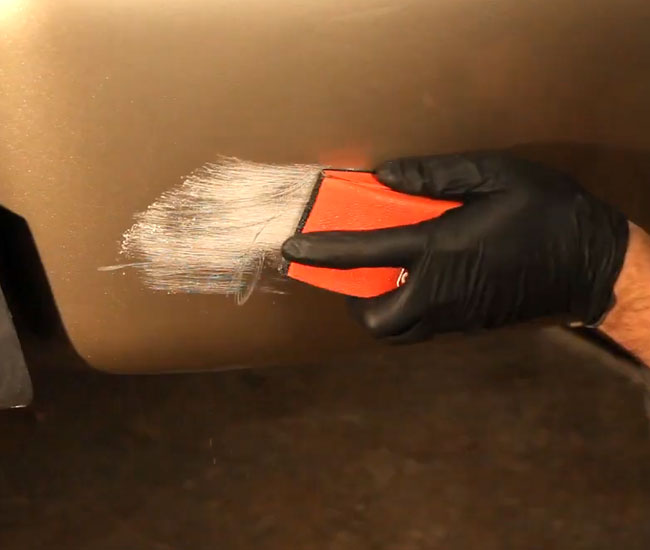

If you see some dust settle, you can gently remove it with a tack rag.

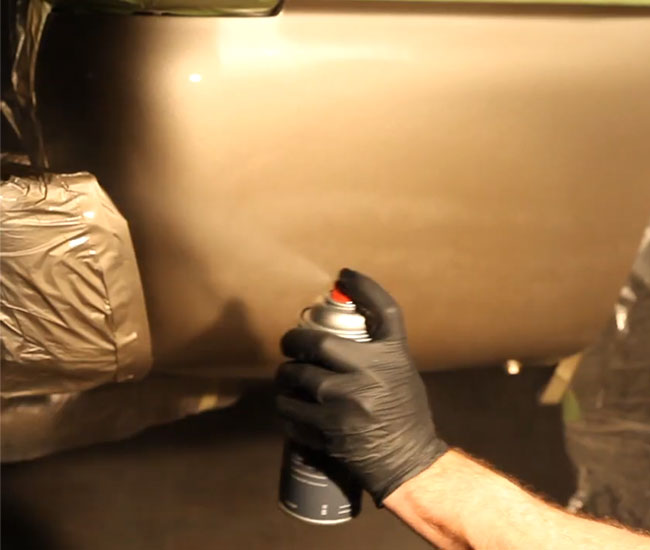

Step 12: Apply Clear Coat

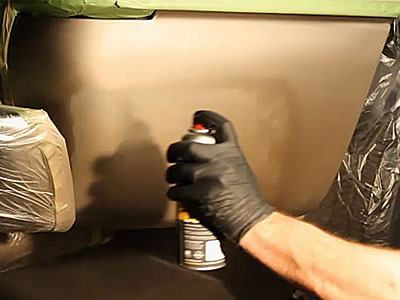

At this point, the paint will look flat and dull. The clear coat will protect the paint and give it some shine. Read instructions. Slide a plastic trigger into the can. Shake it well. Spray 3-4 thin coats of clear coat giving each coat 15 min to dry.

When the clear coat is dry, remove the mask. Overspray can be easily removed by wet sanding the surface with wet/dry 1,500-grit sandpaper.

Step 13: Rubbing Compound

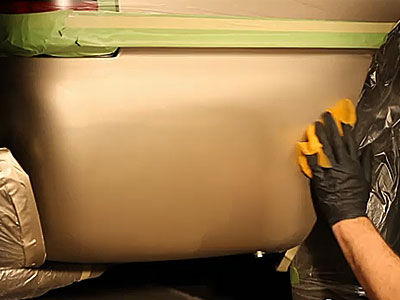

The rubbing compound is used to remove any imperfections in the clear coat. It works like a fine sandpaper. Wait for one day for the clear coat to dry before applying the rubbing compound.

Step 14: Polishing Compound (optional)

For showroom shine use the polishing compound. You can apply by hand it or by buffing machine.

Step 15: Wax (optional)

Wait for one month before applying wax.

I know that car paint repair is not something most people do every day, so don’t hesitate to ask me questions. I am always happy to help.

2 thoughts on “DIY: How to Repair Car Dent with Body Filler”

  1. Hi,
    I just fixed a small “crease” type dent on the tailgate of my 2004 F150. Two things:
    1. This gate has a bit of a curve from top to bottom and it appears the area I fixed might be a little low. I can’t figure out how to round it so it conforms to the surrounding area.
    2. I am using a used tailgate because the original was destroyed. The new one is white and the truck color is blue. The local auto paint store sold me two rattle cans with correct paint but I am wondering how to cover such a large flat area with a spray can.
    Thank you for the great website and any help you will share with me.
    Fred

    • Hi Fred. It might be hard to fix the dent on the car to match a new tailgate especially if it is from a completely different car. If only have cans than you need to put the paint in the spray gun for even coating. Don’t use a roller! Paint brush will not work either. You have to spray paint it. You also need to spray paint little panels next to tailgate so that the paint blends in nicely. That is why I recommend using a spray can. It is much cheaper than getting a spray gun!
